The Mexen AXS 100 is a modern bathroom fan that ensures efficient ventilation with its 100 mm diameter and maximum air flow of 95 m³/h. The integrated motion sensor automatically activates the fan when presence is detected, while the timer allows continued operation for the set time (from 30 seconds to 30 minutes). The non-return flap prevents air backflow, and ball bearings ensure long service life. The product is quiet (34 dB) and energy-efficient (12 W), and its white colour and square shape fit perfectly in any bathroom.

Product Specification:

Diameter: 100 mm

Colour: White

Max air flow: 95 m3/h

Max power consumption: 12 W

Noise level at 3m distance: 34 dB

Power supply: 230 V/ 50 Hz

Protection rating IP: IPX4

Fan equipment:

- Non-return flap prevents backflow of air from ventilation ducts into the room

- Ball bearings, ensuring long service life, higher efficiency, and the option for installation in any position (on the wall or ceiling)

- Timer that allows the fan to continue to operate after it is switched off, in a time range from 30 seconds to 30 minutes depending on the timer setting

- Motion sensor allows automatic activation of the fan when motion is detected within a 5 m range, it operates until the motion ceases and then continues for the time set on the timer

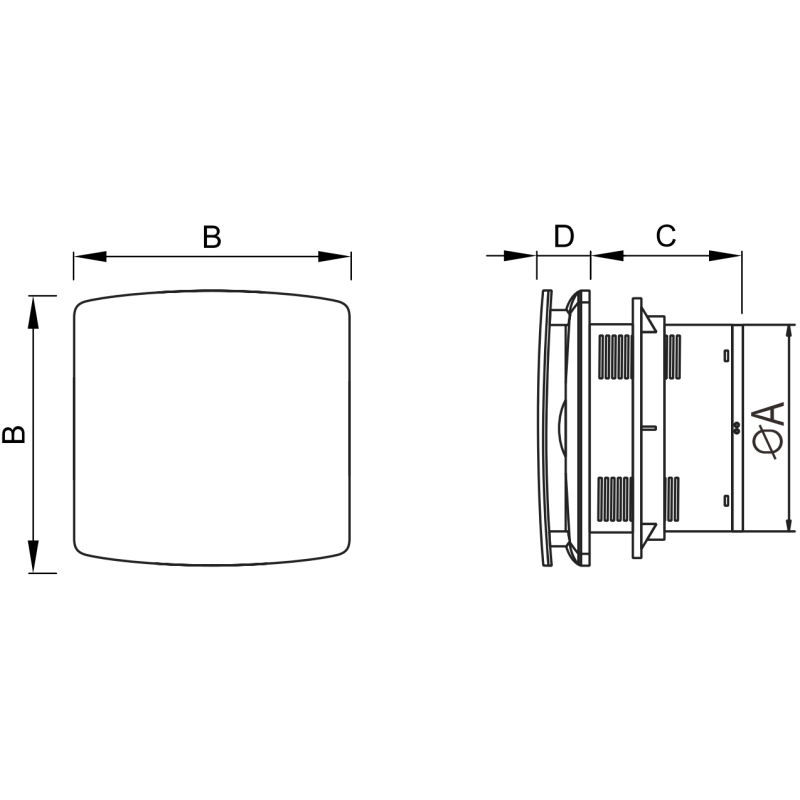

Dimensions:

A - 99 mm

B - 151 mm

C - 102 mm

D - 35 mm

Innovative solutions used in this product

Ball bearing

The use of a ball bearing in a bathroom fan has a huge impact on smooth operation and reduces engine wear. Thanks to this solution, the fan has better performance and a longer lifespan.

Timer

A timer that allows the device to continue working after it is turned off is a very useful feature. It operates not only when needed but also for the set time after activity has ended, ensuring effective moisture removal and improving air quality.

Motion Sensor

A fan equipped with a motion sensor is a convenient and economical solution that allows the fan to turn on automatically without the need for manual operation. It works on the principle of motion detection within the sensor's range, which is approximately 5 meters.

Quiet operation

The product is characterized by a low level of noise generation. It will be an excellent choice for bathrooms, where noise should not interfere with daily use, while the device effectively fulfills its ventilation role.

Effective Ventilation

High air exchange efficiency in a bathroom fan is a key factor ensuring effective ventilation, moisture elimination, and preventing the development of mould and fungi in the room.

Backdraft Damper

The device is equipped with a mechanism that prevents air from flowing back into the room after the fan is switched off. It is especially useful in bathrooms, where preventing unwanted airflow can improve comfort and hygiene.

IPX4 Protection Level

A fan with an IPX4 protection level is resistant to water splashes from different directions, making it suitable for use in bathrooms where humidity is high and there is a risk of the device being splashed with water.

Wall or ceiling installation

A bathroom fan with the option for wall and ceiling installation is a very versatile solution that provides flexibility in installation and adaptation to different spatial arrangements in the bathroom.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
AXS
Diameter
100 mm
Color
White
Shape
Square
Humidity Sensor
No
Timer
Yes
Pull Switch
No
Motion Sensor
Yes
