Mexen AXR 100 bathroom fan with motion sensor, timer, white - W9602-100S-00

Mexen AXR 100 is a high-performance bathroom fan equipped with a motion sensor and timer. It provides a maximum air flow of 95 m3/h with low power consumption of 12 W. Thanks to quiet ball bearings, it operates efficiently and for a long time. It features a back draft shutter that prevents air from reversing and can be installed on the wall or ceiling. Ideal for modern bathrooms, it ensures effective ventilation and user comfort thanks to automatic activation upon motion detection.

Product Specification:

Diameter: 100 mm

Colour: White

Max air flow: 95 m3/h

Max power consumption: 12 W

Noise level at a distance of 3m: 34 dB

Power supply: 230 V/ 50 Hz

IP protection degree: IPX4

Fan equipment:

- Back draft shutter preventing air from returning from ventilation ducts into the room

- Ball bearings, which provide long life, higher efficiency and the possibility of installation in any position (on the wall or ceiling)

- A timer, which allows the fan to continue working after it is turned off within a time range from 30 seconds to 30 minutes depending on the timer setting

- Motion sensor allows automatic activation of the fan when the sensor detects motion within a range of 5 m, it operates until the motion ceases and then continues working for the time set on the timer

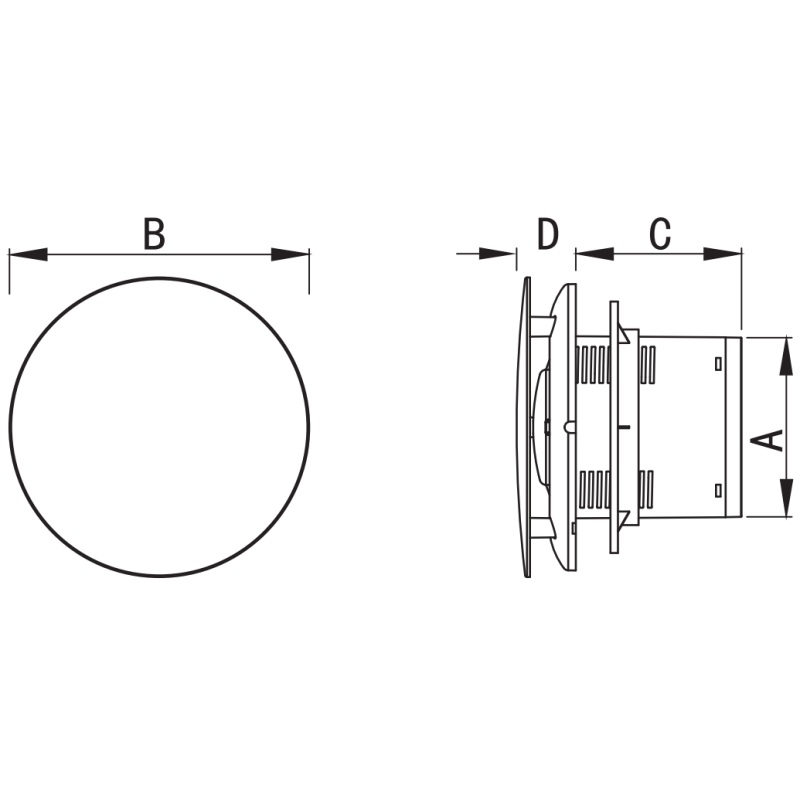

Dimensions:

A - 99 mm

B - 160 mm

C - 89 mm

D - 32 mm

Innovative solutions used in this product

Ball bearing

The use of a ball bearing in a bathroom fan has a huge impact on smooth operation and reduces engine wear. Thanks to this solution, the fan has better performance and a longer lifespan.

Timer

A timer that allows the device to continue working after it is turned off is a very useful feature. It operates not only when needed but also for the set time after activity has ended, ensuring effective moisture removal and improving air quality.

Motion Sensor

A fan equipped with a motion sensor is a convenient and economical solution that allows the fan to turn on automatically without the need for manual operation. It works on the principle of motion detection within the sensor's range, which is approximately 5 meters.

Quiet operation

The product is characterized by a low level of noise generation. It will be an excellent choice for bathrooms, where noise should not interfere with daily use, while the device effectively fulfills its ventilation role.

Effective Ventilation

High air exchange efficiency in a bathroom fan is a key factor ensuring effective ventilation, moisture elimination, and preventing the development of mould and fungi in the room.

Backdraft Damper

The device is equipped with a mechanism that prevents air from flowing back into the room after the fan is switched off. It is especially useful in bathrooms, where preventing unwanted airflow can improve comfort and hygiene.

IPX4 Protection Level

A fan with an IPX4 protection level is resistant to water splashes from different directions, making it suitable for use in bathrooms where humidity is high and there is a risk of the device being splashed with water.

Wall or ceiling installation

A bathroom fan with the option for wall and ceiling installation is a very versatile solution that provides flexibility in installation and adaptation to different spatial arrangements in the bathroom.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
AXR
Diameter
100 mm
Color
White
Shape
Round
Humidity Sensor
No
Timer
Yes
Pull Switch
No
Motion Sensor
Yes
User manual
Download
Safety information
Download
Warranty conditions
Download
Manufacturer
See
